Victron Rack Solutions

Victron 19-inch rack solutions are available from 27U to 45U high with 600 to 1200 mm deep cabinets. Made from electro-galvanized steel sheet, 100% rust proof, these cabinets are long lasting and thoroughly engineered.
Racks are available with single or double front door and double door at the back.

Highly perforated doors of > 80% allows optimum airflow and cooling of equipment installed.

Each VSP-R server rack solution is precisely configured to your requirements, complete wired, fitted and tested before delivery for guaranteed performance and fast deployment.

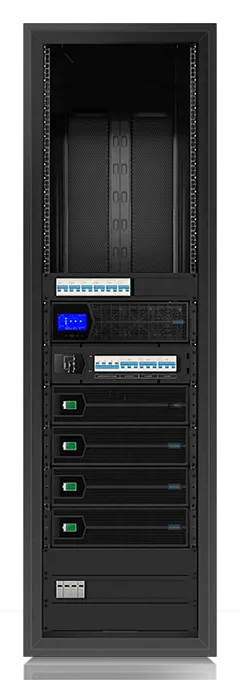

1 | AC distribution
Load breakers built-in

2 | Victron PMU
Make before break bypass with input/output and bypass MCB for installable UPS

3 | SPD
40kA input surge protection

4 | Cooling
2-6 fan with temperature control

5 | Victron UPS
Rack mount UPS 1kVa to 40 kVa
Wide range of rack mount UPS available from 1 kVA single phase to 40 kVA 3Phase in 2U and 3U housing

6 | Scalable battery
Hot swap, scalable From minutes to Hours

Victron VPS-R 1kVA to 10 kVA

Pluggable, rack mounted UPS in 2U housing rated from 1 kVA to 10 kVA, single phase input/output. Built-in static switch and internal hot swap battery for smaller models (1kVA to 3 kVA). 6 kVA and 10 kVA UPS utilize external 2U or 3U battery packs.

Victron VRP 10 kVA to 40 kVA

Installable rack mount UPS in 3U housing rated from 10 kVA to 40 kVA, single phase, and or 3-phase input/output, 30 and 40 kVA available with 3-phase input only. Built-in static switch and can support large external battery for several hrs back-up.

Victron PMU

Victron Power Management Unit (PMU) in 3U housing is available for installable rack mount UPS solutions only. Complete fitted with back terminals and breakers for input, output, (separate) bypass input and manual bypass switch. The manual bypass can be activated without any break to the load.

Victron Scalable battery

Hot swap, scalable battery packs in 2U and 3U housing. Battery can be configurated from minutes to hours depending on the UPS/battery capacity. 2U battery pack can hold up to 8 high-rate batteries and 3U high packs can hold up to 16 high-rate batteries each.
